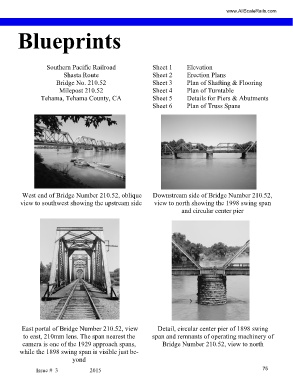

Blueprints
Southern Pacific Railroad Sheet 1 Elevation
Shasta Route Sheet 2 Erection Plans
Bridge No. 210.52 Sheet 3 Plan of Shafting & Flooring
Milepost 210.52 Sheet 4 Plan of Turntable
Tehama, Tehama County, CA Sheet 5 Details for Piers & Abutments
Sheet 6 Plan of Truss Spans
West end of Bridge Number 210.52, oblique Downstream side of Bridge Number 210.52,
view to southwest showing the upstream side view to north showing the 1998 swing span
and circular center pier
East portal of Bridge Number 210.52, view Detail, circular center pier of 1898 swing
to east, 210mm lens. The span nearest the span and remnants of operating machinery of
camera is one of the 1929 approach spans, Bridge Number 210.52, view to north
while the 1898 swing span is visible just be-
yond
